Robots
The Nachi Robotic product line has been designed to optimize robot speed, work envelope, payload capacity, accuracy, size and reliability.
EC Scara
Payload 6 Kg & 10 Kg
Catalogues
EC06 Brochure.pdf
EC10 Brochure.pdf
EC06 Robot Features
The EC06 series are simple structure robots with high precision suitable for applications such as assembly, handling, and so on. Maximum reach can be selected from 3 types: 500mm, 600mm, 700mm. The tip axis is a hollow structure. Therefore, tube/hose routing from the robot to the tool is simple. Complex construction is significantly reduced as well
EC10 Robot Features
-
Increased Payload Capacity, Supports Rated 5kg and up to 12kg
-
Long reach of 800/1,000mm Selectable vertical axis length
-
Selectable from 200/300mm
-
Equipped with LAN cable as standard equipment
.avif)
EZ Scara
Payload 2 Kg & 3 Kg
Catalogues
EZ Scara.pdf

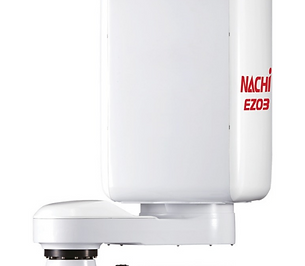

EZ Scara Features
The EZ SCARA Robot Series comprises 6-Axis (EZ02) and 4-Axis (EZ03) models. EZ robots are available in both floor and inverted-mounted configurations and have various reach and stroke options. This high-speed robot series is excellent for material handling, assembly, electronics, and palletising applications.
Downsizing the equipment
-
Install the inverted mount to save space in the equipment layout
High-speed operation with the shortest path
-
Operate at high speed using the slim arm.
-
Travel the shortest path by using inverted mounting.
Smart cable routing
-
Use a large 36 mm-diameter hole at the wrist tip.
-
Build all wires and tubes into the machine body to reduce interference and improve reliability.
Various options
-
Select an appropriate arm length and controller from the four available lineups.
CMZ05 Collaborative
Payload 5 Kg
Catalogues
CMZ05.pdf
CMZ05 Collaborative Features
Add collaborative robot functions to the high speed, high accuracy, and reliability of the MZ series.
Collaborative Rated
-
Compliant with various certifications to ensure safety as a collaborative robot (ISO13849-1, ISO10218-1, ISO/TS15066)
-
Shape design and software functions that minimize the risk of getting caught.
High speed & High precision
-
Achieves top-class high-speed and high-accuracy with the exact mechanism as the MZF series (2500 mm/s when not collaborating).
Supports various industries (protection grade: equivalent to IP67)
-
The hollow wrist and the wiring and piping inside the arm reduce the risk of contact with the workpiece
-
Abundant applications for various industries.
CZ Collaborative
Payload 10 Kg
Catalogues
CZ10.pdf
CZ Collaborative Robot Features
-
Safety Stops when contact with a person or collision is detected
-
Double Encoder on all Joints which monitor 150N or less force to stop safely.
Easy Programming
-
Direct teach is possible with Individual Axis mode, Line Interpolation, and Tool Interpolation.
-
In-Line wrist makes it easy for robot movement.
User-friendly design
-
There are no Operator Pinch points. 25mm or wider gaps between the arm and joints
-
No sharp edges, enabling safer human interaction
Safety
-
Certification for ISO 10218-1 & TS 15066
-
Built-in Robot Monitoring Unit
Through the Arm Cabling
-
Application Signal Digital Input * 4, Digital Output * 3 available at the wrist
-
Pneumatic connection available at the wrist
MZ Robot Series
Payload 1 Kg to 25 Kg
MZ01 Robot Features
-
Great for high density layouts.
-
Apply various applications.
MZ04 Robot Features
-
Smart cable routing in hollow wrist
-
Hand cables are neatly housed inside the hollow wrist.
-
Smart cable routing helps prevent interference with peripheral equipment, which greatly improves equipment reliability.
-
Compact with a wide working envelope
-
The lightweight and compact robot arm helps keep the equipment simple and saves space.
-
The installation area is half that of the MZ07 (A5 paper size).
-
Fastest operating speed in its class improves productivity
-
The lightness of the robot arm and the latest control technologies give it the fastest operation in its class, which improves productivity.
Sophisticated and Smooth form
⦁ Its design prevents dust and dirt from accumulating and makes it easy to remove.
Smart Cable Routing
-
Cables and tubes can be routed through the hollow wrist
Application Examples
MZ07/07L/10 Robot Features
-
Top-performing high-speed*1
-
Maximum speed of each axis is the top in this class
-
Contributing to improved productivity through high speed
-
Controller
-
Smart Cable Routing
-
Cables and tubes can be routed through the hollow wrist
MZ12 Robot Features
-
Protection level: IP67 rated
-
Paint is coolant-resistant
-
Leads its class in speed and precision
-
Footprint is 17% smaller than conventional robots
-
Through-arm cabling and air piping included
Controller
MZ25/35S Robot Features
-
Supports various applications with a large operating range and a powerful wrist
-
Hollow wrist structure with built-in cables minimises cable interference with peripheral devices
-
Equipped with IP 67 equivalent (dust-proof, moisture-resistant)/Coolant resistant paint/rust proof bolts; parts are all standard and adapt to various work environments
-
Adapts to any work environment with various standard equipments
Application Example
Catalogues
MZ01.pdf
MZ04.pdf
MZ07.pdf
MZ12.pdf
MZ25.pdf
MZ-F Series
Payload 7 Kg
MZ 07F Robot Features
High Speed
-
Tact time is up to 43% * shorter compared to the conventional model. MZ07F/MZ07LF can increase productivity.
High Precision
-
High precision from high rigidity design. This helps to widen the types of applications and reduces tact times.
Hollow Wrist
-
Smart cable and hose routing through the hollow wrist. Minimizes interference and wear.
High speed - Increased Productivity -
The world's top-class speed on each axis remains unchanged. Up to 43% * shorter tact time than conventional models due to improved
High accuracy - appliable to complex work, reduction in tact time -
Improved pose repeatability can handle complex operations. Enhanced path accuracy for tact time reduction.
Pose repeatability: Reduced misalignment to approx. 3/4* of conventional robots
Path accuracy: Reduced misalignment to approx. 1/3* of conventional robots
Hollow wrist structure - space saving
Wiring for tooling can be routed through the hollow wrist to minimize the risk of interference with peripheral equipment, allowing flexible operation even in small spaces.
Catalogues
MZ07F_7LF.pdf
MZ 10LF
Payload 7 Kg
Catalogues
MZ10LF.pdf
MZ 10LF Robot Features
Lightweight body, long reach
-
Achieved 10kg payload and 1202mm reach with 55kg body weight.
Hollow wrist
-
Smart cable and hose routing through the hollow wrist. Minimizes interference and wear.
Extensive standard equipment
-
Standard specification includes integrated application wiring in the arm. It can be used in various environments.
-
Applicable in conditions such as dust and water splashing.
55 Kg body weight,10kg payload, 1202mm max Reach.
Suitable for a variety of applications -
1202mm reach and 10kg payload realized with only 55kg weight.
A 10kg payload is needed for more flexibility when considering tooling.
Slim design, Hollow wrist - space-saving -
The compact design and small footprint allow for a compact layout.
Wiring for tooling can be routed through the hollow wrist to minimize the risk of interference with peripheral equipment, allowing flexible operation even in small spaces.
MZ Medium Payload Robot Series
Catalogues
MZ35 50 70 50LF Brochure.pdf
MZ Medium Payload Robot Features
The Nachi MZ 35F, 50F, 70F, and 50LF Robot models are high-performance 6-axis industrial robots engineered for demanding manufacturing environments where speed, precision, and space efficiency are critical. With its lightweight, slim design and industry-leading compact turning radius, it delivers powerful performance in tight workspaces—making it the smart, reliable choice for maximising productivity in applications such as machine tending, material handling, and high-speed assembly.
MZ 35F,MZ50F, MZ 70F & MZ50LF Features
-
Lightweight and slim body
Space-saving with a lightweight and slim body. Compared to the previous model, the main body weight is reduced by 5% and the installation area by 23%. An IP67 equivalent for the main body is a standard specification that expands the range of applications
-
Hollow wrist
The hollow wrist structure allows cables to be routed through the wrist for improved convenience when handling wiring and tubing.
-
High speed and High precision
It is faster and more accurate than conventional machines, thereby improving productivity.
SRA Robot Series
Payload from 100 Kg to 250 Kg
Catalogues
SRA100_166_210_166L_120EL.pdf
SRA Robot Features
Extensive Product Lineup
-
SRA series comes in various payloads from 100 Kg to 250 Kg
-
Standard floor mount models, invert mount model, long reach models over 3 meters
World Class Robot Speed
-
Robot motion makes minimum cycle times unbeatable.
-
Lightweight and high rigidity design make high acceleration and minimum vibration.
-
Maximum speed on all axes reduces cycle time. Improved productivity by these designs.
Easy to use
-
Improved motor drive controls for accurate positioning and repeatability
-
Slim and compact design allows closer installation in less floor space.
Energy Saving
-
Power consumption reduced 15% from previous model
-
Energy saving is possible by reducing the robot’s weight by 20% and using the newest motor drive controls.
LP Robot Series
Payload from 130 Kg to 210 Kg
Catalogues
LP130_180_210.pdf
LP130F.pdf
LP Robot Features
Nachi LP Series is 4 Axes Palletising Robot available in 130Kg,180 Kg & 210Kg Payload capacities. A 2600mm vertical stroke and a maximum reach of 3210mm easily allow a single LP robot to load up to 6 pallets in a layout with a +180° operation of J1 Axis.
Advanced yet easy-to-use Palletising software intuitively guides the user through teaching new Palletising routines. Path optimization software features to aid the programmer in minimizing cycle time and increasing throughput.Automatic program path generation minimizes setup and teaching time by automatically creating a robot motion path from cell layout input data. After teaching, the Nachi "Part height adjustment" software function automatically compensates for real-world conditions and eliminates the need for constant program "touchup."
High Speed Palletising
-
1500 packages per hour for 130Kg loads(LP130)
-
1800 packages per hour for 60kg loads (LP130)
-
Flexible System Setup is available with 130Kg or 180Kg capacity models
Handle a variety of Loads
-
Easily lift different shapes and sizes
Compact Layout
-
Compact design reduces interference within a large operating range so work layouts can be flexible and compact
MC Heavy Robot Series
Payload 280 Kg to 1000 Kg
MC 280L, MC350 & MC470P
The MC280L, MC350, and MC470P are specifically designed for heavy and repetitive lifting tasks, with capacities of 280 Kg, 350 Kg, and 470 kg. In addition to high payload capacity, the MC280L provides an extensive reach of 3101 mm, while the MC350 and MC470P provide a 2771 mm work envelope to perform work on several products or machines simultaneously. Superior strength, rigidity, and reach allow the MC280L, MC350, and MC470P to excel in large-scale lifting operations, including car bodies, engines, foundry components, and many other heavy industrial products.
-
Linkage-less construction
-
Lower weight and greater rigidity make it the fastest robot in its class
-
MC470P can lift 470 Kg with wrist direction downwards
MC400L,MC600,MC 700,
The MC400L, MC600, and MC700 are specifically designed for heavy, repetitive lifting tasks, with capacities of 400 kg, 600 kg, and 700 kg, respectively. In addition to high payload capacity, the MC400L offers an impressive 3756 mm work envelope, while the MC600 and MC700 provide an extensive 2890 mm work envelope to handle multiple products or machines simultaneously. Superior strength, rigidity, and reach allow the MC400L, MC600, and MC700 to excel in large-scale lifting operations, including car bodies, engines, foundry components, and many other heavy industrial products
Hollow wrist structure
-
Avoid interference of cables with peripheral equipment
-
Improved reliability of the cable due to its stable behaviour with wrist movement
High-speed motion
-
Top-level performance in its class
Powerful wrist
-
Large work products can be handled due to the large wrist capacity
Advanced applicability
-
Wide envelope
-
5 m vertical stroke for MC400L
Application signals are standard
2 ports for pneumatic,40 application signals, Devicenet cable, LAN cable
MC1000DL
The Nachi MC1000DL robot is built for heavy lifting and material handling. It boasts an impressive 1,000 kg payload capacity. Designed for strength and reliability, the MC1000DL offers a large work envelope to manage multiple machines, parts, or processes at once.
With superior rigidity, reach, and precision, the MC1000DL excels in automotive manufacturing and foundry work. It handles heavy industrial tasks, such as lifting car bodies, engines, and oversized components.
MC Series heavy-duty robots deliver the power of traditional elevators or transfer systems at a lower cost. They add the flexibility of robotic automation, boosting productivity, efficiency, and ROI.
Catalogues
MC350_280L_470P.pdf
MC400L.pdf
MC600.pdf
MC1000DL.pdf
